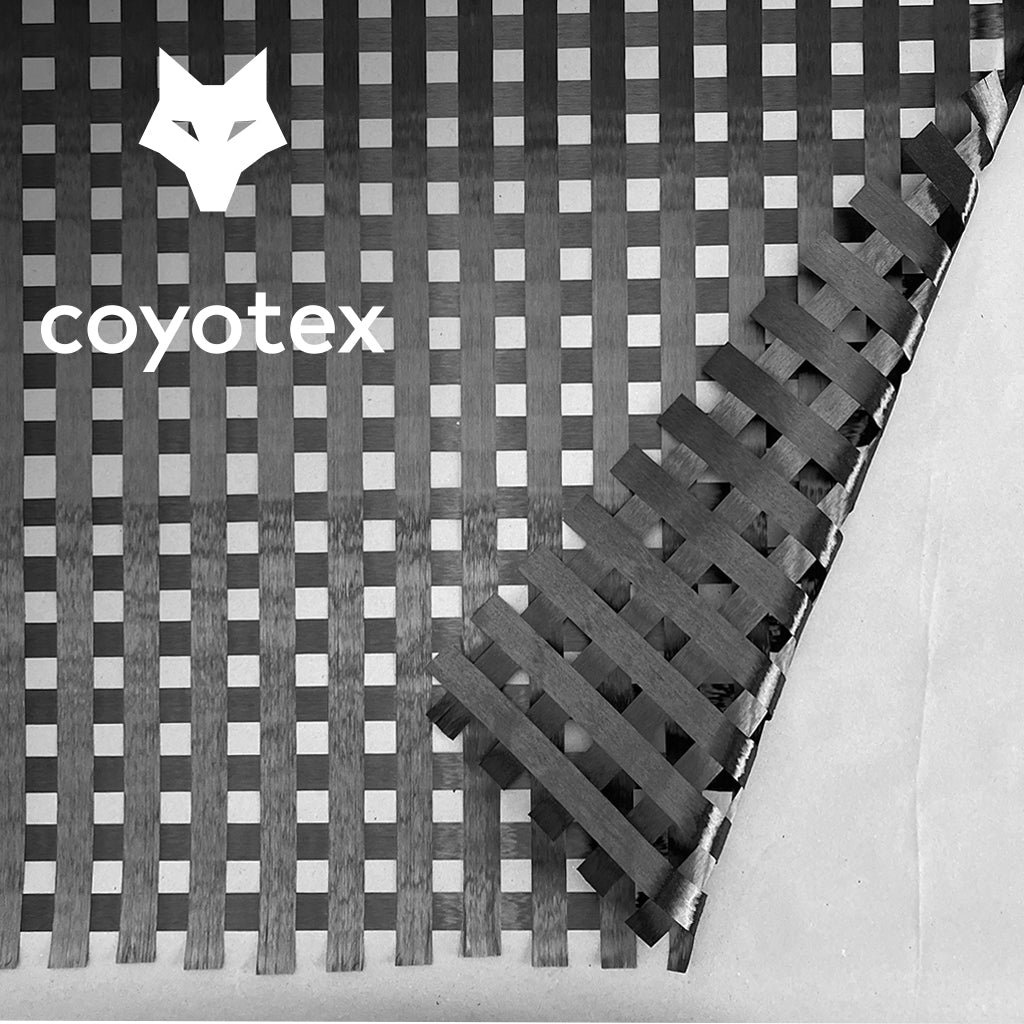

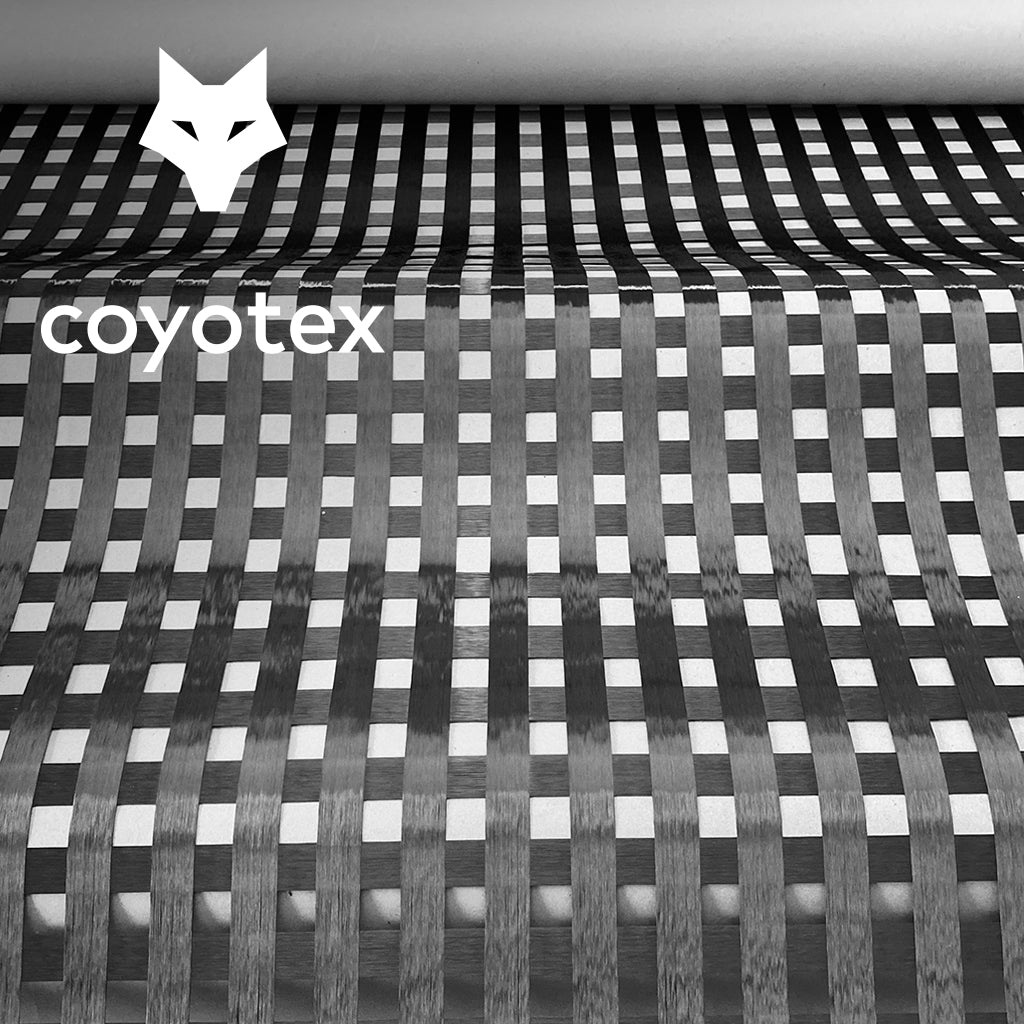

Carbon Fiber Fabric ‚Grid‘

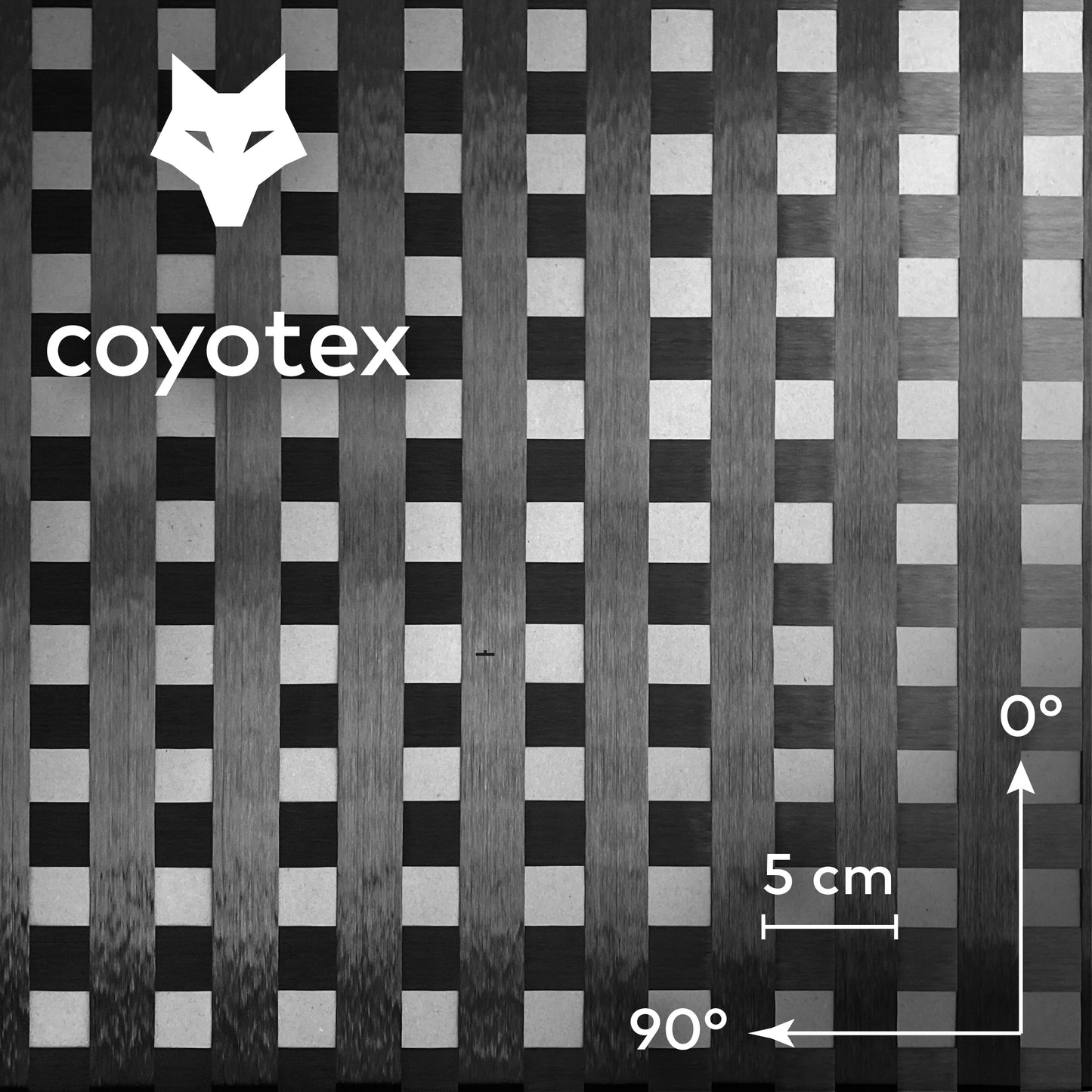

Biaxial | (90°|0°) | 155 g/m²

€209,00
€209,00
€209,00
€64,31 m2
Tax included. Shipping calculated at checkout.
Size
A masterpiece made of carbon for your application. An eye-catcher that gives your application a unique, high-quality premium look.
  • Perfect surface, without reinforcement mesh or sewing threads.
  • Optimal mechanical properties due to stretched fibers
  • On request, we can also manufacture this design with your desired orientations. Give us a call or Send us an email .
  • Coyotex Fabrics are produced for you to order on demand. The production time is approx. 1 week.

Technical details

| Biaxial | | 155 g/m² | Spread-Tow | This article is produced and delivered in accordance with our specification "optics standard" .

Properties

Perfect surface: coyotex ™ carbon fiber fabrics have no reinforcement mesh and no sewing threads. The fibers are perfectly aligned. Your component will have a perfect surface without undulations. At the same weight coyotex ™ carbon fabrics are stiffer and stronger than classic fabrics and woven fabrics because of the stretched fibers.

Areas of use

Typical areas of application are high-strength and high-rigidity components in sports equipment construction, motor sports, wind energy, boat, ship and aircraft construction, furniture construction. coyotex ™ carbon fabrics are ideally suited for the construction of flat and slightly curved components e.g. kiteboards, snowboards, wakeboards, longboards, hoods, designer furniture. There are no limits to your imagination.

Processing

coyotex ™ carbon fabrics are suitable for processing with epoxy resin . Resin consumption approx. 345 g / m², laminate thickness: approx. 0.26 mm (applies to fabrics with 310 g / m²). Typical manufacturing processes: hand lamination / squeegeeing, vacuum infusion processes (e.g. VARI, VAP) and series processes (e.g. RTM, wet pressing).
